How do you determine the quality of grinding balls?

Grinding balls are essential in various industrial applications, particularly in mining, cement manufacturing, and thermal power generation. Determining the quality of grinding balls is crucial for ensuring efficient and effective grinding processes. High-quality grinding balls can significantly impact the performance and longevity of milling operations.

What Factors Influence the Durability of Grinding Balls?

Material Composition

The material composition of grinding balls is a fundamental determinant of their durability. High-quality grinding balls are typically made from steel or other alloys known for their hardness and resistance to wear and corrosion. The most commonly used materials include high carbon steel, alloy steel, and cast iron.

High Carbon Steel: Known for its hardness and wear resistance, high carbon steel is often used in grinding balls. The carbon content usually ranges from 0.6% to 1.4%, which significantly enhances the hardness and reduces wear.

Alloy Steel: Alloying elements like chromium, molybdenum, and nickel can improve the mechanical properties of steel. For instance, chromium increases hardness and wear resistance, while molybdenum enhances toughness.

Cast Iron: Cast iron grinding balls, particularly those with high chromium content, offer excellent hardness and abrasion resistance. However, their brittleness can be a disadvantage in some applications.

Manufacturing Process

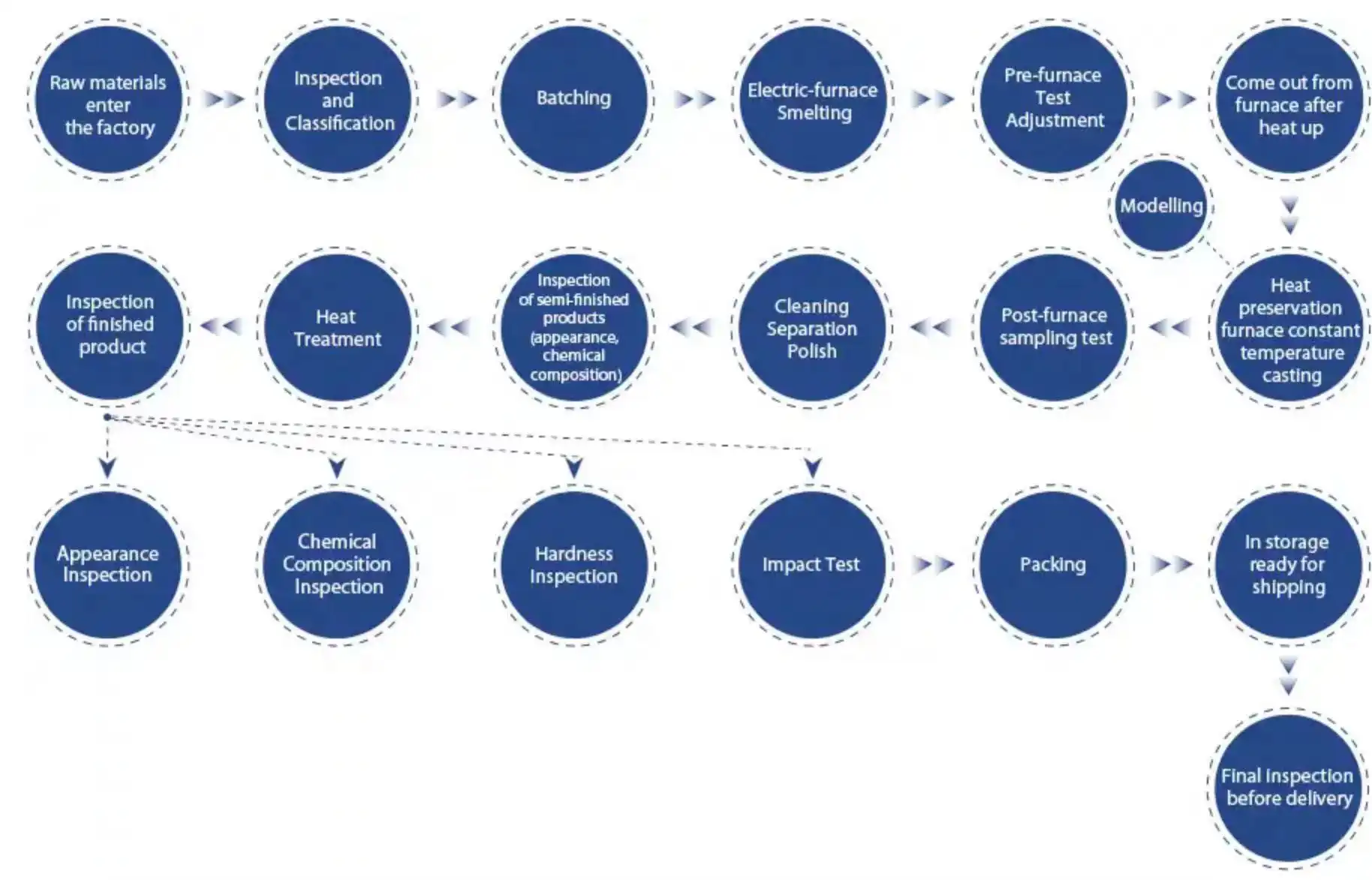

The manufacturing process also plays a crucial role in determining the durability of grinding balls. High-quality grinding balls are typically produced using advanced casting or forging techniques. These processes ensure a uniform microstructure, which is essential for consistent performance.

Casting: This process involves pouring molten metal into a mold to form the grinding balls. The cooling rate and mold design are critical factors that affect the microstructure and, consequently, the ball's performance.

Forging: Forging involves deforming the metal under high pressure to improve its mechanical properties. This process produces grinding balls with a fine-grained microstructure, which enhances their toughness and wear resistance.

Heat Treatment

Heat treatment is a critical step in the manufacturing of grinding balls. It involves heating and cooling the balls in a controlled environment to alter their microstructure and mechanical properties.

Quenching: This process involves heating the balls to a high temperature and then rapidly cooling them in water or oil. Quenching increases hardness and wear resistance but can make the balls more brittle.

Tempering: After quenching, the balls are usually tempered to reduce brittleness while maintaining hardness. This process involves reheating the balls to a lower temperature and then cooling them slowly.

Wear Resistance

Wear resistance is a key quality indicator for grinding balls. It refers to the ability of the balls to resist abrasion, impact, and corrosion during operation. Wear resistance is primarily influenced by the material composition and heat treatment process.

Abrasion Resistance: This refers to the ability of the grinding balls to withstand surface wear caused by friction. High hardness and a uniform microstructure contribute to better abrasion resistance.

Impact Resistance: Impact resistance is the ability of the grinding balls to absorb and dissipate energy without breaking or deforming. This is particularly important in applications involving heavy loads and high-impact forces.

Corrosion Resistance: Corrosion resistance is crucial for grinding balls used in wet grinding or aggressive chemical environments. Alloying elements like chromium and nickel can significantly enhance corrosion resistance.

Hardness

Hardness is a measure of a material's resistance to deformation. For grinding balls, hardness is typically measured using the Rockwell or Brinell hardness scale. Higher hardness values usually indicate better wear resistance and longer service life.

Rockwell Hardness Test: This test measures the depth of penetration of an indenter under a large load. It provides a quick and accurate assessment of hardness.

Brinell Hardness Test: This test involves pressing a hard ball into the surface of the grinding ball under a specified load. The diameter of the indentation is then measured to calculate the hardness.

Quality Control and Testing

Quality control and testing are essential to ensure the durability and performance of grinding balls. Manufacturers typically conduct a series of tests to verify the quality of their products.

Chemical Analysis: This test determines the chemical composition of the grinding balls to ensure they meet the required specifications.

Microstructural Analysis: This involves examining the microstructure of the grinding balls under a microscope to detect any defects or inconsistencies.

Hardness Testing: Hardness tests are conducted to verify the hardness of the grinding balls and ensure they meet the required standards.

Wear Testing: Wear tests simulate the operating conditions of the grinding balls to evaluate their wear resistance and predict their service life.

How to Conduct a Comprehensive Quality Test for Grinding Balls?

Visual Inspection

Visual inspection is the first step in the quality testing process. It involves examining the grinding balls for any visible defects, such as cracks, surface irregularities, or deformations. While this test is not sufficient to determine the overall quality, it helps identify obvious issues that could affect performance.

Surface Examination: Inspect the surface of the grinding balls for any signs of cracks, pits, or roughness. Smooth and defect-free surfaces are indicative of good quality.

Shape and Size Consistency: Check for consistency in the shape and size of the grinding balls. Uniformity in these aspects ensures even wear and efficient grinding.

Chemical Composition Analysis

Chemical composition analysis is critical for verifying that the grinding balls are made from the specified materials. This test typically involves techniques such as spectroscopy or X-ray fluorescence (XRF) to identify the elements present and their concentrations.

Spectroscopy: This technique uses light to analyze the chemical composition of the grinding balls. It is accurate and can detect a wide range of elements.

X-ray Fluorescence (XRF): XRF analysis involves bombarding the grinding balls with X-rays and measuring the resulting fluorescence to determine the chemical composition. This method is quick and non-destructive.

Hardness Testing

Hardness testing is essential for assessing the wear resistance and durability of grinding balls. The most common hardness tests are the Rockwell and Brinell tests.

Rockwell Hardness Test: This test measures the depth of penetration of an indenter under a large load. It is suitable for quick and accurate hardness measurements.

Brinell Hardness Test: This test involves pressing a hard ball into the surface of the grinding ball under a specified load and measuring the diameter of the indentation. It provides a more comprehensive assessment of hardness.

Microstructural Analysis

Microstructural analysis involves examining the internal structure of the grinding balls under a microscope. This test helps identify any defects, such as porosity, segregation, or phase imbalances, that could affect performance.

Optical Microscopy: This technique uses visible light to magnify the microstructure of the grinding balls. It is useful for identifying large-scale defects and inconsistencies.

Scanning Electron Microscopy (SEM): SEM provides higher magnification and resolution than optical microscopy, allowing for detailed examination of the microstructure. It is particularly useful for detecting small defects and phase distributions.

Wear Testing

Wear testing simulates the operating conditions of the grinding balls to evaluate their wear resistance and predict their service life. This test typically involves subjecting the balls to repeated abrasion, impact, or corrosion under controlled conditions.

Abrasion Testing: This test measures the wear resistance of the grinding balls under conditions that simulate actual operation. It helps determine the rate of material loss due to friction.

Impact Testing: Impact testing assesses the ability of the grinding balls to withstand repeated impacts without breaking or deforming. It is essential for applications involving high-impact forces.

Corrosion Testing: Corrosion testing evaluates the resistance of the grinding balls to chemical attack in aggressive environments. It is crucial for applications involving wet grinding or exposure to corrosive substances.

References

1. Radziszewski, K., & Wróbel, M. (2005). "Methods for Assessing the Quality of Grinding Balls." Journal of Mining and Metallurgy, 41(1), 15-22.
2. Li, Q., & Zhang, Y. (2008). "Evaluation Techniques for Grinding Ball Quality in Mineral Processing." Minerals Engineering, 21(10), 741-748.
3. Smith, R., & Brown, T. (2010). "Assessing Grinding Ball Quality: Key Performance Indicators." International Journal of Mineral Processing, 94(3), 168-177.
4. Kogan, M., & Feldman, Y. (2012). "Quality Control in Grinding Balls Manufacturing: Testing and Analysis." Powder Technology, 219, 100-106.
