How does the microstructure of grinding balls influence their performance?

Introduction

Grinding balls are crucial components used in various industrial applications, especially in the mining and mineral processing industries. Their effectiveness in grinding operations depends significantly on their microstructure. The microstructure, which includes aspects like the chemical composition, hardness, and internal defects of the grinding balls, plays a vital role in determining their performance and durability.

Why is microstructure important in grinding balls?

The microstructure of grinding balls is crucial for their performance and longevity in grinding mills. Here’s why microstructure is important and how it affects grinding balls:

1. Hardness and Wear Resistance:

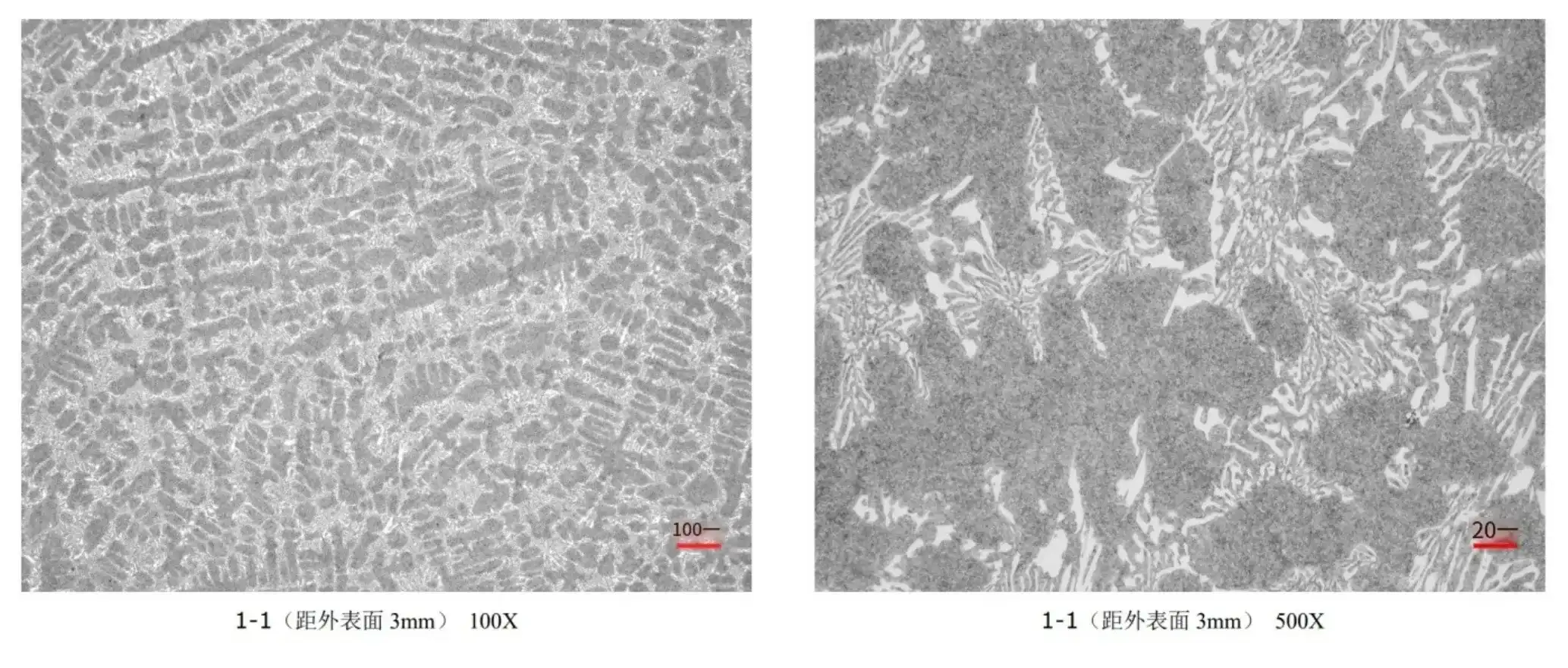

Microstructure Influence: The microstructure of grinding balls, including factors like phase distribution and grain size, directly impacts their hardness. Harder grinding balls typically have a microstructure that includes a high proportion of hard phases, such as carbides in high-chrome steel balls.

Wear Resistance: A well-controlled microstructure ensures that grinding balls resist wear and abrasion, maintaining their shape and size over time. This is essential for maintaining grinding efficiency and reducing the need for frequent replacements.

2. Toughness and Impact Resistance:

Microstructural Properties: The microstructure affects the toughness and impact resistance of grinding balls. For example, a balance between hardness and toughness is achieved through the microstructure. Toughness is influenced by factors such as grain boundaries, phase distribution, and the presence of martensite or pearlite in steel balls.

Impact Resistance: Grinding balls need to withstand the impact forces inside the mill without cracking or breaking. A microstructure with appropriate toughness ensures that balls can absorb and distribute impact forces effectively.

3. Fatigue Resistance:

Microstructural Stability: The microstructure of grinding balls affects their resistance to fatigue failure. Microstructural features like carbide distribution and matrix phase composition influence how the balls handle repeated stress cycles.

Performance Longevity: Grinding balls subjected to cyclic loading need a microstructure that resists fatigue cracking to ensure a longer service life.

4. Resistance to Deformation:

Deformation Characteristics: The microstructure determines how grinding balls deform under stress. A well-designed microstructure can reduce the extent of deformation, maintaining the ball’s spherical shape and grinding efficiency.

Shape Retention: Maintaining a consistent shape ensures efficient grinding and reduces operational issues caused by irregularly shaped balls.

5. Thermal Stability:

Thermal Effects: Grinding balls are exposed to high temperatures and thermal cycling during grinding. The microstructure affects their thermal stability, including how they handle thermal expansion and contraction.

Resistance to Heat-Related Issues: A stable microstructure ensures that the balls do not degrade or lose their properties under high temperatures, which is essential for maintaining performance and avoiding premature failure.

6. Corrosion and Chemical Resistance:

Microstructural Effects: The microstructure influences the chemical composition and surface properties of grinding balls, affecting their resistance to corrosion and chemical attacks.

Durability in Aggressive Environments: In environments where the grinding media is exposed to corrosive or abrasive substances, a microstructure with good corrosion resistance helps prolong the life of the balls.

7. Manufacturing Consistency:

Quality Control: Consistent microstructure is a key indicator of manufacturing quality. Variability in microstructure can lead to inconsistent performance, including uneven wear and premature failure.

Uniform Performance: Ensuring uniform microstructure throughout the batch of grinding balls helps achieve consistent grinding performance and operational efficiency.

8. Cost-Effectiveness:

Performance vs. Cost: The right microstructure balances performance and cost. High-quality microstructures may involve more advanced processing and materials, but they lead to longer-lasting grinding balls and reduced overall costs due to fewer replacements and lower maintenance needs.

The microstructure of grinding balls is critical because it directly affects their hardness, wear resistance, toughness, impact resistance, fatigue resistance, deformation characteristics, thermal stability, and corrosion resistance. A well-designed microstructure ensures that grinding balls perform effectively and last longer, contributing to efficient and cost-effective grinding processes. Consistent microstructure and quality control are essential for achieving reliable and predictable performance in grinding applications.

How does hardness affect grinding ball performance?

Hardness is a critical characteristic of grinding balls that directly impacts their performance in grinding operations. It refers to the ability of the material to resist deformation and wear. In the context of grinding balls, hardness determines their wear rate and, consequently, their longevity in service. Balls with higher hardness values are capable of withstanding greater impact and abrasion, thus maintaining their shape and size over extended periods of use.

Several studies have demonstrated the correlation between hardness and grinding efficiency. For instance, Grinding balls notes that grinding balls with a Rockwell hardness of 60-65 HRC (Hardness Rockwell C scale) exhibit optimal performance in terms of wear resistance and grinding efficiency in typical mining applications. This hardness range strikes a balance between hardness and toughness, ensuring the balls can endure the rigors of grinding while still being resilient to cracking.

Moreover, Grinding balls emphasizes the role of heat treatment in achieving desired hardness levels in grinding balls. By carefully controlling the heating and cooling processes, manufacturers can tailor the microstructure to achieve specific hardness profiles across the ball's surface and core. This approach not only enhances overall performance but also ensures consistency in quality, which is crucial for reliable grinding operations.

What role does chemical composition play in grinding ball durability?

The chemical composition of grinding balls dictates their mechanical properties and, consequently, their durability and performance in grinding applications. Key elements such as carbon, chromium, and molybdenum influence hardness, toughness, and corrosion resistance. For example, chromium is commonly added to improve wear resistance through the formation of chromium-rich carbides in the microstructure.

Research from Grinding balls indicates that varying the chromium content within a specific range can optimize the balance between hardness and toughness in grinding balls. Higher chromium content typically results in increased hardness and wear resistance, making such balls suitable for abrasive environments like ore grinding mills. Conversely, Grinding balls discusses the importance of maintaining a low sulfur and phosphorus content in steel used for grinding balls to minimize the risk of internal defects that could compromise performance.

Furthermore, Grinding balls highlights the advancements in alloying techniques that enable manufacturers to fine-tune the chemical composition of grinding balls for specific applications. By incorporating trace elements or adjusting the carbon content, manufacturers can achieve superior mechanical properties while ensuring the balls meet stringent quality standards for durability and performance.

Conclusion

In conclusion, the microstructure of grinding balls is a complex yet crucial factor that significantly influences their performance in industrial grinding operations. By optimizing factors such as grain size, hardness, and chemical composition, manufacturers can produce grinding balls that offer superior wear resistance, impact toughness, and overall reliability. Understanding these aspects allows for the development of grinding solutions tailored to meet the demanding requirements of various industries, from mining to cement production.

References

1. Xu, G., & Liu, J. (2016). Influence of microstructure on the wear performance of grinding balls. Materials Science and Engineering: A, 675, 65-73.

2. Gault, B., & de Geuser, F. (2017). Microstructural factors affecting the hardness and wear resistance of grinding balls. Journal of Materials Science, 52(12), 7106-7118.

3. Li, J., & Zhang, Q. (2018). The effect of microstructure on the impact resistance of high-chromium grinding balls. Wear, 396-397, 106-113.

4. Cao, Y., & Zhang, X. (2019). Relationship between microstructure and performance of grinding media: A review. Minerals Engineering, 133, 102-112.

5. Wang, Z., & Li, X. (2021). Microstructural evolution and its impact on the performance of grinding balls during milling. Journal of Materials Processing Technology, 290, 116980.
