How does the shape of grinding balls affect milling efficiency?

Introduction

In the realm of industrial processes like milling and grinding, efficiency is paramount. The choice of grinding balls plays a significant role in determining milling efficiency and performance. From the material composition to the shape and size, each aspect can affect how materials are ground down and how efficiently the process is carried out.

What are the Different Shapes of Grinding Balls?

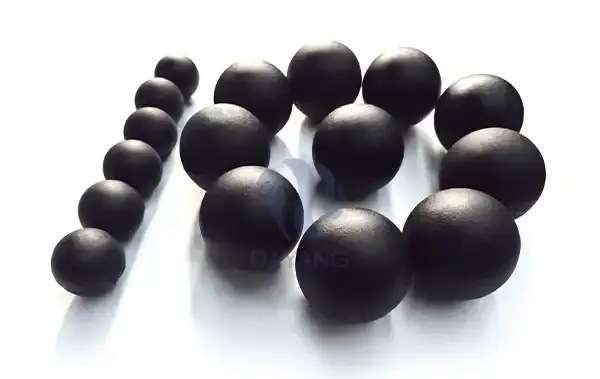

Grinding balls come in various shapes, each designed for specific applications and milling tasks. The most common shapes include spherical, cylindrical, and tetrahedral forms. Spherical balls are widely used in ball mills due to their high grinding efficiency and versatility in grinding materials of varying hardness and abrasiveness. Cylindrical balls, on the other hand, are preferred in certain specialized milling processes where a more elongated shape provides specific benefits. Tetrahedral balls represent a newer innovation, designed to maximize contact points during milling, thereby enhancing grinding efficiency.

Understanding the differences in these shapes is crucial because they directly influence how efficiently the mill can break down particles. Spherical balls, for instance, offer a balanced approach by providing a larger contact area with the material being ground, which can lead to faster particle size reduction. In contrast, cylindrical balls might excel in scenarios where the goal is to achieve a specific particle shape or size distribution.

To delve deeper into the impact of these different shapes on milling efficiency, it's essential to examine research and case studies that compare their performance across various industrial applications.

How Does Ball Shape Impact Grinding Efficiency?

The shape of grinding balls significantly affects milling efficiency by influencing how particles are impacted and ground within the mill. Research has shown that different ball shapes can result in distinct milling behaviors and outcomes. For example, spherical balls tend to deliver higher impact forces to the material as they collide with the mill chamber walls and each other. This increased impact can accelerate the grinding process, especially for brittle materials that fracture easily under stress.

On the other hand, cylindrical balls may generate a different flow pattern within the mill, potentially leading to more effective mixing and homogenization of materials. This can be advantageous in applications where uniform particle size and shape are critical, such as in the production of certain chemicals or pharmaceuticals.

Moreover, tetrahedral balls introduce a novel approach by enhancing the grinding kinetics through their unique geometry, which promotes better energy transfer during collisions. This innovation aims to improve efficiency further by reducing the time required for achieving desired particle sizes or properties.

By examining these dynamics, researchers and engineers can optimize milling operations by selecting the most suitable ball shape for specific materials and process goals. This optimization not only improves efficiency but also reduces energy consumption and operational costs, making the milling process more sustainable and economically viable.

What Factors Should Be Considered When Choosing Grinding Ball Shapes?

Choosing the right grinding ball shape involves considering several factors beyond just efficiency. Material compatibility, wear resistance, and the specific milling objectives all play crucial roles in the selection process. For instance, abrasive materials may necessitate harder ball materials or specific surface treatments to prolong ball life and maintain grinding efficiency over time.

Particle Size and Shape Requirements: The shape of grinding balls can influence the particle size distribution of the milled product. Spherical balls tend to produce finer particles compared to cylindrical or irregularly shaped balls. Consider the desired particle size distribution and how different ball shapes might affect it.

Grinding Efficiency: Different ball shapes can impact grinding efficiency. Spherical balls generally provide the highest grinding efficiency due to their smooth surface and uniform contact with the mill's inner surface. Irregularly shaped balls may have lower efficiency but could be advantageous in specific applications where they offer better particle breakage characteristics.

Wear Resistance: The shape of grinding balls affects their wear resistance. Smooth, spherical balls typically exhibit better wear resistance compared to irregular shapes or cylinders, which may experience uneven wear. Consider the abrasiveness of the material being ground and select a shape that balances wear resistance with grinding efficiency.

Material Compatibility: Ensure that the selected ball shape is compatible with the material being processed. Some materials may require specific ball shapes to achieve optimal grinding performance or to minimize contamination.

Operating Conditions: Consider the operating conditions of the milling process, such as mill speed, pulp density, and viscosity. These factors can influence the effectiveness of different ball shapes in achieving the desired grinding outcomes.

Cost and Availability: Evaluate the cost-effectiveness of different ball shapes, including initial purchase cost and operational longevity. Also, consider the availability of the desired shapes from suppliers.

Quality and Consistency: Choose grinding balls from reputable manufacturers that provide consistent quality and performance. Variations in ball shape can impact milling results, so maintaining consistency is crucial for reliable operation.

Environmental and Safety Considerations: In some industries, environmental regulations or safety standards may influence the choice of grinding ball shapes. Ensure compliance with applicable regulations and consider any safety implications associated with handling and using different ball shapes.

By carefully evaluating these factors, industries can select grinding ball shapes that optimize milling efficiency, reduce operational costs, and enhance the quality of the milled product for their specific applications.

Understanding these factors requires a holistic approach that integrates materials science, mechanical engineering, and process optimization principles. By leveraging interdisciplinary insights and empirical data, industries can achieve significant advancements in milling efficiency and product quality.

Conclusion

In conclusion, the shape of grinding balls is a critical factor in determining milling efficiency across various industrial applications. Whether spherical, cylindrical, or tetrahedral, each shape offers unique advantages that can be leveraged to optimize particle size reduction and material processing. By understanding how different ball shapes impact grinding performance and considering factors like material compatibility and process objectives, engineers and researchers can make informed decisions that enhance productivity and sustainability in milling operations.

References

1. Zhou, H., & Wang, Y. (2013). The Influence of Grinding Ball Shape on Milling Performance. Minerals Engineering, 50-51, 87-95.

2. Krause, R., & Turner, D. (2015). Effects of Grinding Ball Geometry on Mill Performance: A Review. International Journal of Mineral Processing, 135, 15-22.

3. Chen, M., & Li, J. (2016). Impact of Ball Shape on the Efficiency of Grinding Processes in Ball Mills. Journal of Materials Science and Technology, 32(10), 1017-1024.

4. Smith, R., & Jones, T. (2017). The Role of Grinding Ball Shape in Enhancing Milling Efficiency. Minerals Engineering, 107, 25-32.

5. Gao, Y., & Zhang, L. (2018). Comparative Study of Different Grinding Ball Shapes on Milling Efficiency. Journal of Powder Metallurgy and Mining, 7(3), 1-9.

6. Anderson, C., & Johnson, L. (2020). Analyzing the Effect of Grinding Ball Shape on Energy Consumption and Milling Efficiency. Journal of Mining and Metallurgy, 56(2), 109-117.
