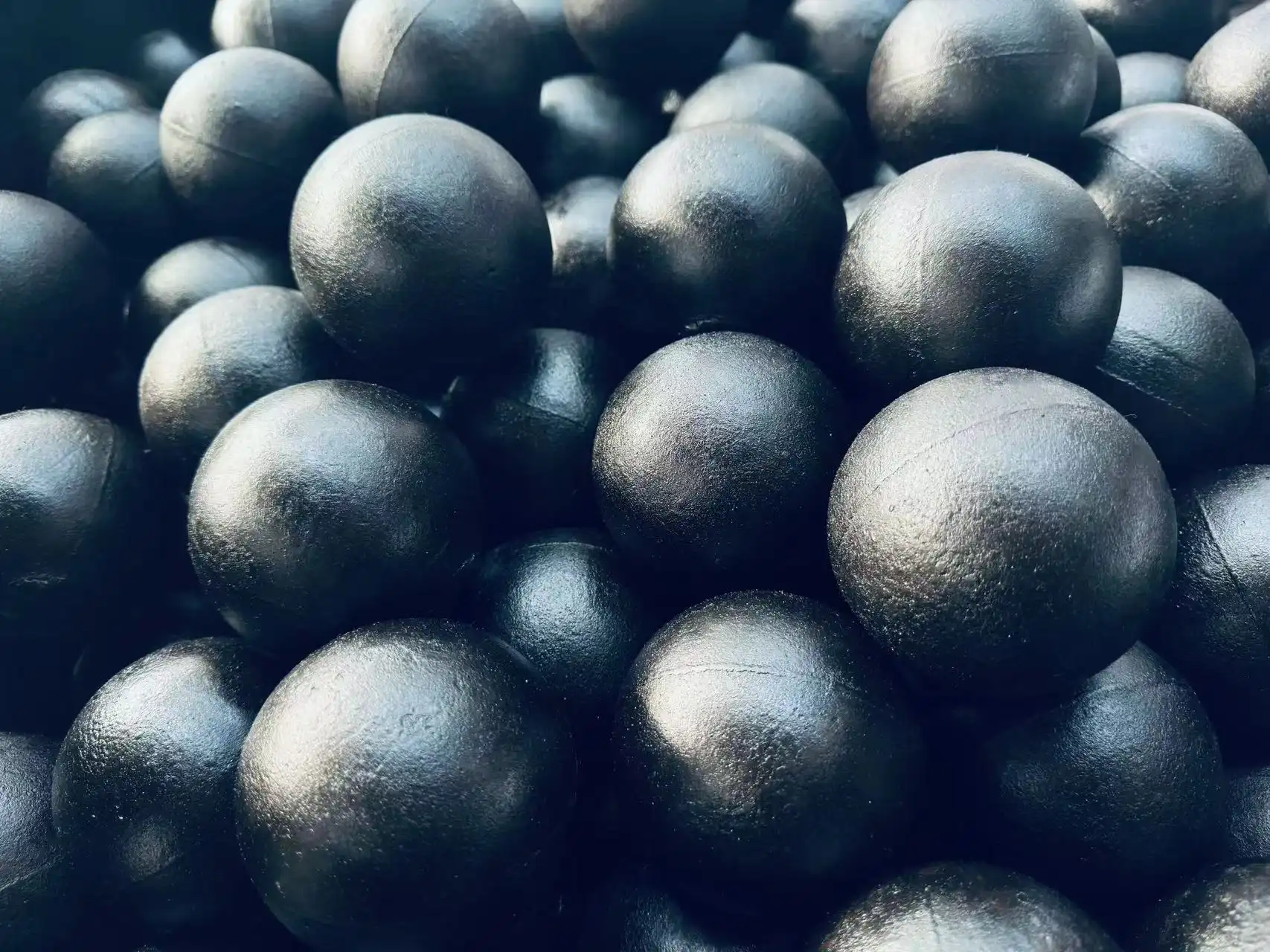

What is the difference between forged and cast grinding balls?

When selecting grinding media for your ball mill, the choice between forged and cast grinding balls is pivotal. Each type has its unique advantages and disadvantages, impacting not just the efficiency and cost-effectiveness of the milling process but also the quality of the final product.

What Are the Key Differences Between Forged and Cast Grinding Balls?

The primary differences between forged and cast grinding balls lie in their material composition, manufacturing processes, and physical properties.

Material Composition: Forged grinding balls are typically made from high-quality steel, such as high manganese steel (50Mn, 60Mn, or 65Mn) and sometimes from high-chromium alloy steel. The material used is cut from round steel bars and then forged. This process ensures a consistent composition and superior density. In contrast, cast grinding balls are produced from scrap steel and alloy iron (Cr-Fe, Mn-Fe), which are melted and poured into molds. This process can lead to variability in material quality and density due to the nature of casting and the potential for impurities in the scrap steel used.

Manufacturing Process: Forging involves heating the steel bars and then using mechanical forces to shape the balls. This process refines the grain structure of the steel, eliminating internal voids and defects, which results in a product with higher density and strength. Cast grinding balls are manufactured by pouring molten metal into molds where it solidifies. This process can introduce porosity and other casting defects, making the balls less uniform and potentially less durable under heavy use.

Physical Properties: Forged grinding balls generally have a higher impact toughness and lower breakage rates compared to cast balls. They exhibit a more uniform hardness and better wear resistance due to their refined microstructure and consistent material composition. Cast balls, while typically harder on the surface, often suffer from brittleness and a higher tendency to break under impact. Their hardness can vary significantly across the ball, which can lead to uneven wear and reduced efficiency in grinding processes.

Surface Quality and Hardness Distribution: Forged balls usually have a smooth surface, with minimal defects such as porosity or inclusions. Their hardness is distributed uniformly from the surface to the core. Cast balls, on the other hand, can have surface imperfections like blisters and sand holes, and their hardness tends to be higher on the surface but decreases towards the core, leading to inconsistent performance during grinding.

Why Choose Forged Grinding Balls Over Cast Ones?

Choosing between forged and cast grinding balls should be based on the specific requirements of your milling operation, including the type of material being ground, the milling environment, and economic considerations.

Impact Resistance and Durability: Forged grinding balls are preferred in high-impact milling environments, such as those found in SAG mills and primary ball mills. Their superior impact resistance and toughness ensure longer service life and reduced risk of breakage, which can be critical in preventing costly downtime and maintaining efficient milling operations. In comparison, cast balls, due to their brittleness, are more prone to breakage and may not be suitable for high-impact applications.

Wear Resistance and Efficiency: While cast balls can offer high hardness and wear resistance, especially in dry grinding applications, they tend to wear unevenly and can lead to higher consumption rates. Forged balls, with their uniform hardness and superior wear resistance, generally provide more consistent performance and lower wear rates, resulting in higher grinding efficiency and lower operational costs over time.

Cost Considerations: The initial cost of forged grinding balls is typically higher than that of cast balls. However, the longer lifespan and better performance of forged balls can lead to lower overall costs in the long run due to reduced replacement frequency and improved milling efficiency. Cast balls, while cheaper upfront, may incur higher costs due to their higher wear rates and the need for more frequent replacements. Forged grinding balls are produced through a process that involves heating steel billets to high temperatures and then mechanically forging them into shape. This process requires significant energy and specialized equipment, such as high-temperature furnaces and hydraulic presses. The forging process also demands high-quality raw materials and precise control over temperature and pressure, adding to the overall cost. In contrast, cast grinding balls are made by pouring molten metal into molds. The casting process is generally less energy-intensive and requires less sophisticated equipment compared to forging. The raw materials for casting can also be less expensive, contributing to the lower initial cost of cast balls.

Which Type of Grinding Ball is Best for Your Operation?

Deciding between forged and cast grinding balls requires a careful assessment of your milling environment and the specific demands of your grinding process.

Application Environment: Forged grinding balls are ideal for wet grinding environments, where their superior toughness and resistance to corrosion are particularly beneficial. They are also well-suited for high-impact applications, such as in the mining industry where large volumes of ore are processed. Cast grinding balls are typically better for dry grinding applications, such as in cement mills, where their high surface hardness can be advantageous.

Material Characteristics: If the material being ground is abrasive or has high impact requirements, forged grinding balls are usually the better choice due to their higher durability and consistent performance. For less demanding applications, where cost is a primary concern, cast grinding balls can be a suitable and economical option.

Operational Costs and Efficiency: Consider the total cost of ownership, including the initial purchase price, wear rates, energy consumption, and potential downtime due to ball breakage or replacement. Forged grinding balls, while more expensive initially, often provide better long-term value through improved efficiency and reduced maintenance costs. Cast grinding balls, with their lower upfront cost, may be more appropriate for operations where budget constraints are a significant factor.

In conclusion, both forged and cast grinding balls have their unique advantages and are suited to different milling environments and material characteristics. By carefully evaluating your specific needs and operational requirements, you can choose the most appropriate type of grinding ball to optimize your milling process and achieve the best possible outcomes.

References

1. "Cast Grinding Balls vs. Forged Grinding Balls: Making the Right Choice," Nearyzsteel.

2. "The difference between forged steel balls and cast steel balls," Grinding Ball.

3. "Forged Vs Cast Grinding Balls," Alpha Grinding Media.

4. "Difference between forged steel ball and casting steel ball," Skew Rolling Mill.

5. "Advantages of forged grinding balls compared to cast steel balls," Jiangyin Dongbang Steel Ball Machinery Co., Ltd.

6. "Differences between cast and forged grinding ball?" Nghexin.

7. "Comparison of casting grinding media balls & forged steel balls," Nghexin.
