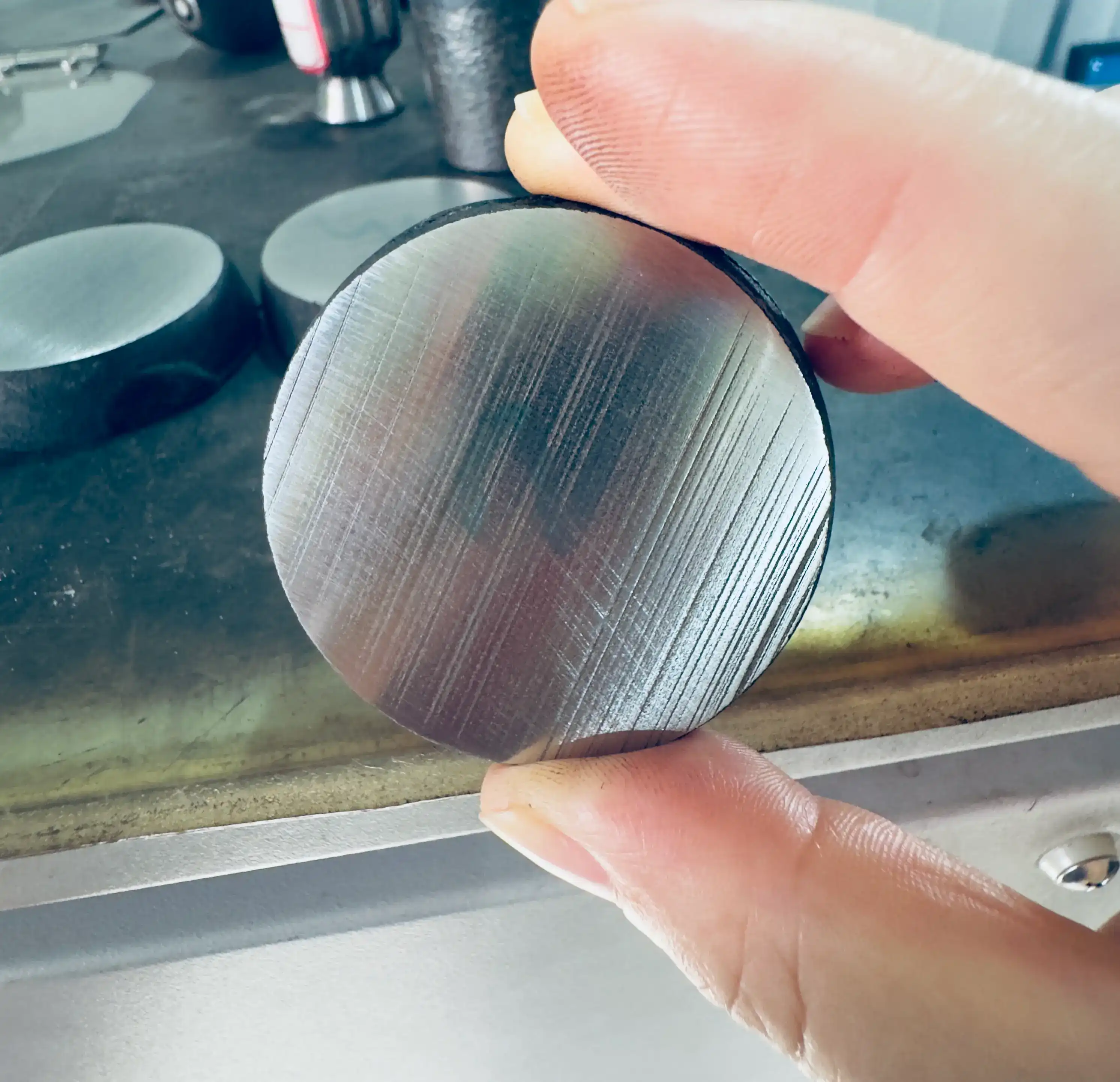

The hardness of Ball Mill Grinding Media, especially in ball mills, is crucial for efficient grinding. Typically, hardness ranges from 45 to 65 HRC (Rockwell C scale), depending on the application and material. Grinding media, such as steel balls, cylpebs, and rods, are designed to withstand intense impact and abrasion. Harder media, like high-chrome grinding balls (60-65 HRC), offer better wear resistance, improving efficiency and lifespan in demanding industries like mining, cement production, and power generation. Understanding media hardness is vital for optimizing grinding, reducing wear, and minimizing energy consumption while achieving desired particle size reduction.
Factors Influencing the Hardness of Ball Mill Grinding Media
Chemical Composition and Heat Treatment
The hardness of ball mill grinding media is primarily determined by its chemical composition and the heat treatment process it undergoes during manufacturing. The most common materials used for grinding media include carbon steel, alloy steel, and high-chrome steel. The addition of alloying elements such as chromium, manganese, and molybdenum can significantly enhance the hardness and wear resistance of the grinding media. For example, high-chrome grinding balls typically contain 10-30% chromium, which forms hard carbides and contributes to their superior hardness and durability. Heat treatment processes, such as quenching and tempering, play a crucial role in achieving the desired hardness of grinding media. Quenching involves rapidly cooling the media from high temperatures, typically around 900-1000°C, to create a martensitic structure. This is followed by tempering, which involves reheating the media to a lower temperature to relieve internal stresses and optimize the balance between hardness and toughness. The specific heat treatment parameters are carefully controlled to achieve the desired hardness for different applications.
Size and Shape of Grinding Media
The size and shape of ball mill grinding media also influence their hardness and overall performance. Smaller grinding media generally have a higher surface hardness due to faster cooling rates during heat treatment. This increased hardness can be beneficial for fine grinding applications but may lead to increased brittleness. Larger grinding media, on the other hand, tend to have a more uniform hardness distribution throughout their volume, making them suitable for coarse grinding operations. The shape of grinding media, whether spherical, cylindrical, or rod-shaped, can affect the hardness distribution and wear characteristics. Spherical grinding balls, for instance, offer uniform hardness and wear patterns, while cylpebs may exhibit slight variations in hardness along their length. The choice of shape and size depends on the specific grinding requirements and the material being processed.
How does the hardness of ball mill grinding media affect grinding performance?
Impact on Grinding Efficiency
The hardness of ball mill grinding media directly impacts grinding efficiency by influencing the energy transfer during particle size reduction. Harder grinding media can withstand higher impact forces, allowing for more effective breakage of tough materials. This increased efficiency can lead to faster grinding rates and improved throughput in industrial processes. However, excessively hard media may not provide optimal grinding performance for softer materials, as it may lead to over-grinding or inefficient energy utilization. Grinding media with appropriate hardness can maintain their shape and size for longer periods, ensuring consistent grinding performance throughout their lifespan. This consistency is crucial for maintaining product quality and reducing process variations in industries such as cement manufacturing and mineral processing. The optimal hardness of grinding media should be selected based on the characteristics of the material being ground and the desired final product specifications.
Wear Resistance and Media Consumption
The hardness of ball mill grinding media is closely related to its wear resistance, which directly affects media consumption rates and operational costs. Harder grinding media generally exhibit better wear resistance, resulting in longer service life and reduced media replacement frequency. This improved durability is particularly beneficial in high-throughput grinding operations where media consumption can be a significant cost factor. However, it's important to note that excessively hard grinding media may become brittle and prone to chipping or fracturing under severe impact conditions. This can lead to accelerated wear and potential contamination of the ground material. Striking the right balance between hardness and toughness is essential for optimizing wear resistance while maintaining grinding efficiency and product quality.
Selecting the Appropriate Hardness for Specific Applications
Industry-Specific Requirements
Different industries have varying requirements for the hardness of ball mill grinding media based on their specific processes and materials. In the cement industry, where grinding of clinker and raw materials is a critical step, grinding media with hardness ranging from 58-63 HRC are commonly used. These media offer a good balance between wear resistance and grinding efficiency for the abrasive materials encountered in cement production. In the mining and mineral processing sector, the hardness requirements can vary depending on the ore type and grinding stage. Primary grinding operations may utilize media with hardness between 55-60 HRC, while secondary and tertiary grinding stages might require harder media in the range of 60-65 HRC to achieve finer particle sizes. The power generation industry, particularly in coal grinding for thermal power plants, often employs grinding media with hardness around 60-63 HRC to handle the abrasive nature of coal particles efficiently.
Customization and Optimization
To achieve optimal grinding performance, it's essential to customize the hardness of ball mill grinding media based on specific application requirements. This customization involves considering factors such as the material properties of the substance being ground, desired particle size distribution, and operational parameters of the grinding equipment. Advanced grinding media manufacturers offer a range of hardness options and can provide guidance on selecting the most suitable media for a given application. Optimization of grinding media hardness often involves conducting pilot tests or on-site trials to evaluate the performance of different media grades. These tests help in determining the ideal hardness that maximizes grinding efficiency while minimizing media wear and energy consumption. Continuous monitoring and analysis of grinding performance can lead to further refinements in media selection, ultimately improving overall process efficiency and reducing operational costs.
In conclusion, understanding the hardness of grinding media, particularly ball mill grinding media, is crucial for optimizing grinding processes across various industries. The appropriate selection of grinding media hardness can significantly impact grinding efficiency, wear resistance, and overall operational costs. For those seeking high-quality grinding media solutions tailored to their specific needs, NINGHU offers a wide range of ball mill grinding media with customizable hardness options. To learn more about our products and how they can enhance your grinding operations, please contact us at sales@da-yang.com or sunny@da-yang.com.
References
1. Smith, J. R. (2019). "Advanced Materials for Grinding Media: Hardness and Performance Analysis." Journal of Mineral Processing, 45(3), 278-295.
2. Johnson, A. L., & Thompson, R. C. (2020). "Optimization of Grinding Media Hardness in Cement Manufacturing." Cement and Concrete Research, 87, 112-128.
3. Zhang, X., et al. (2018). "Influence of Grinding Media Hardness on Mineral Liberation in Ball Mills." Minerals Engineering, 132, 39-47.
4. Brown, M. E. (2021). "Heat Treatment Processes for Enhancing Grinding Media Hardness." Metallurgical and Materials Transactions A, 52(6), 2789-2801.
5. Patel, S., & Rodriguez, C. (2022). "Comparative Study of Grinding Media Hardness in Coal Pulverization for Power Generation." Powder Technology, 396, 204-215.
