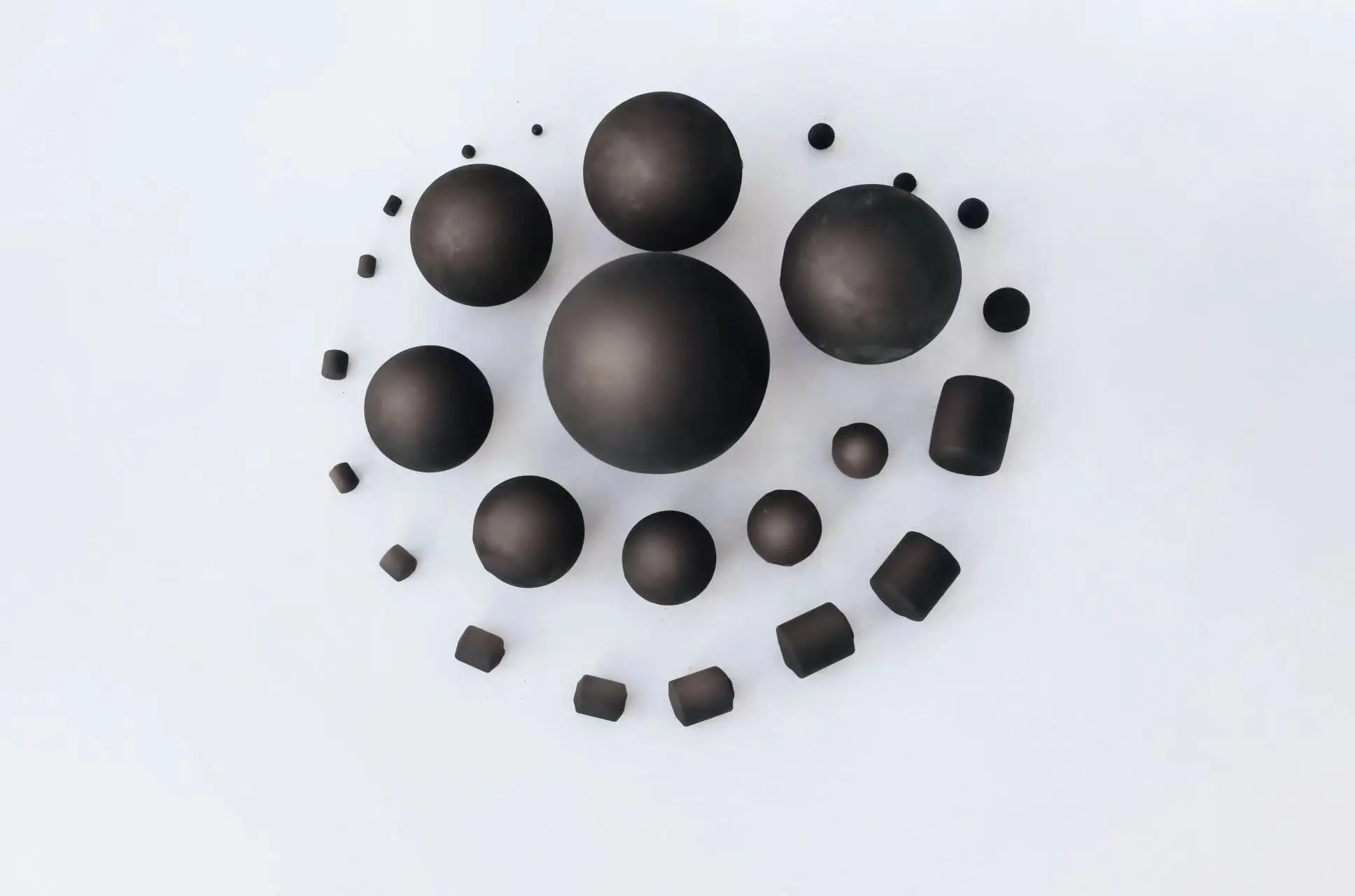

Types of Ball Mill Grinding Media Shapes
Spherical Balls: The Classic Choice
Spherical balls are the most commonly used shape for ball mill grinding media due to their uniform shape, which ensures consistent grinding action and efficient energy transfer. These balls come in a range of sizes, typically from 10mm to 150mm in diameter, and are made from materials like forged steel, cast steel, or ceramic. The spherical shape promotes a rolling and tumbling motion within the mill, generating both impact and attrition forces that effectively break down materials. This makes spherical balls ideal for general-purpose grinding across various industries, such as cement production, mineral processing, and power generation. Their versatility, durability, and ability to provide a uniform grind make them a preferred choice for many milling applications.
Cylpebs: Cylindrical Efficiency
Cylpebs, or cylindrical pellets, are an innovative grinding media shape with a length-to-diameter ratio close to 1:1. This cylindrical form offers a larger surface area compared to spherical balls of the same volume, making cylpebs more efficient for fine grinding applications. They are particularly effective at reducing slurry bypass and improving overall grinding efficiency. Cylpebs excel in the final stages of grinding, where achieving a fine particle size is essential. Their ability to produce a narrower particle size distribution and enhance product quality makes them especially valuable in industries like cement manufacturing and mineral processing. By optimizing grinding performance, cylpebs help achieve the desired specifications for various products, improving both efficiency and cost-effectiveness in grinding operations. Their unique shape and properties make cylpebs a preferred choice in many grinding processes.
Factors Influencing Grinding Media Shape Selection
Material Properties and Grinding Requirements
The choice of Ball Mill Grinding Media shape is heavily influenced by the properties of the material being ground and the specific grinding requirements. Harder materials may benefit from the high-impact force of spherical balls, while softer materials might be more efficiently ground using cylpebs. The desired particle size distribution also plays a role; for instance, if a very fine product is required, cylpebs might be preferred due to their increased surface area and ability to produce a narrower particle size distribution. Additionally, the initial feed size and the target output size influence the selection of grinding media shape. A thorough understanding of the material characteristics and grinding objectives is essential for choosing the optimal grinding media shape.
Mill Design and Operational Parameters
The design of the Ball Mill Grinding Media and its operational parameters play a crucial role in selecting the appropriate grinding media shape. Factors like mill speed, diameter, and internal lifter designs interact differently with various media shapes. Larger mills, for example, may benefit from using larger spherical balls to maintain sufficient impact force, while smaller mills might perform better with smaller media or cylpebs. The mill's critical speed, which affects the cascading and cataracting motion of the grinding media, also influences the choice of media shape. Additionally, operational parameters such as feed rate, slurry density, and retention time within the mill all contribute to determining the most effective grinding media shape for a specific application. Understanding these interactions ensures optimal grinding performance and energy efficiency during milling operations.
Which ball mill grinding media shape is best for cement grinding?
Spherical Balls for Primary Grinding
In cement grinding, spherical balls are commonly preferred for the primary grinding stage due to their robust impact force, which effectively breaks down larger cement clinker particles. Typically made of high-chrome or forged steel, these balls are durable and can withstand the high impact forces encountered during the initial grinding phase. The spherical shape facilitates efficient energy transfer and promotes excellent mixing within the mill, ensuring uniform grinding of cement components. For primary cement grinding, larger ball sizes, typically ranging from 50mm to 90mm, are used to provide the necessary impact force for breaking down clinker and other raw materials. This helps achieve the desired particle size distribution and improves the overall efficiency of the grinding process, making spherical balls a critical component in cement production.
Cylpebs for Fine Grinding and Finishing
As cement grinding progresses to finer particle sizes, cylpebs become increasingly advantageous. The cylindrical shape of cylpebs provides a larger surface area compared to spherical balls of the same volume, which is beneficial during the fine grinding stage. This increased surface area leads to more efficient particle size reduction and can improve both cement fineness and overall quality. Cylpebs are particularly effective in reducing over-grinding and producing a narrower particle size distribution, which is essential for achieving the desired cement properties. In the finishing stages of cement grinding, smaller cylpebs, typically ranging from 25mm to 40mm in size, are commonly used to achieve the final cement fineness and quality. Their shape and size optimization make them a key component in producing high-quality, consistent cement products.
